A probe sized for your tank
Cut the measuring probe to the required working length using the model’s installation guide.
ANALOG & FREQUENCY FUEL LEVEL SENSOR
AG-AF
Connect fuel level measurement to a tracker or controller with an analog or frequency input.
Output0–9 V / 500–2000 Hz
Power12–30 V DC
Measurement error±1%
ProtectionIP67
For non-conductive fuels. Confirm fuel, tank and device compatibility before ordering.
PRODUCT OVERVIEW
Designed around your installation.
Calibrate for the installation
Test the sensor, calibrate readings and add calibration tables with AoooG Portable Configurator Client 5.7 on your Windows PC.
Connect to your equipment
Match the selected output to the tracker or controller, then verify readings through your system.
TECHNICAL DATA
Know the details.
Values follow the technical table in the 2025 wired sensor user guide. Confirm the applicable hardware revision when ordering.
Open source datasheet ↗| Output | 0–9 V / 500–2000 Hz |
|---|---|
| Power | 12–30 V DC |
| Measurement error | ±1% |
| Protection | IP67 |
| Maximum current | 20 mA |
| Resolution | Less than 1 mm |
| Probe length | 700 / 1000 mm; additional lengths up to 3000 mm |
| Operating temperature | −40 to +85 °C |
| Output interval | Continuous |
| Configuration | AoooG Portable Configurator Client 5.7 (Windows PC) |
INSTALLATION & SETUP
Prepare. Calibrate. Verify.
Use the full manual for installation. The steps below explain the workflow; dimensions and mounting allowances depend on the model and accessories.
- 01
Plan the mounting position
Measure the tank and choose a position close to its geometric centre, with room for the probe and mounting hardware.
- 02
Prepare the probe
Use the specified working length and model-specific clearance. Keep metal shavings out of the measuring tube and fit the supplied filter and accessories.
- 03
Set the reference points
Connect the sensor to a Windows PC using the matching configuration adapter. Use AoooG Portable Configurator Client 5.7 to test readings, set empty and full reference points with the intended fuel, and add a calibration table for the tank. Verify the settings before connecting to the monitoring equipment.
- 04
Mount and check the readings
Fit the gasket, seal and secure the sensor as instructed. Check the signal and tank calibration in the connected system.
Wiring reference
| Wire colour | Function |
|---|---|
| Red | Positive supply: 12–30 V DC |
| Black | GND / negative supply |
| Yellow | Analog / frequency output |
Use the fuse protection specified in the manual. Check the wiring against the supplied sensor revision before applying power.

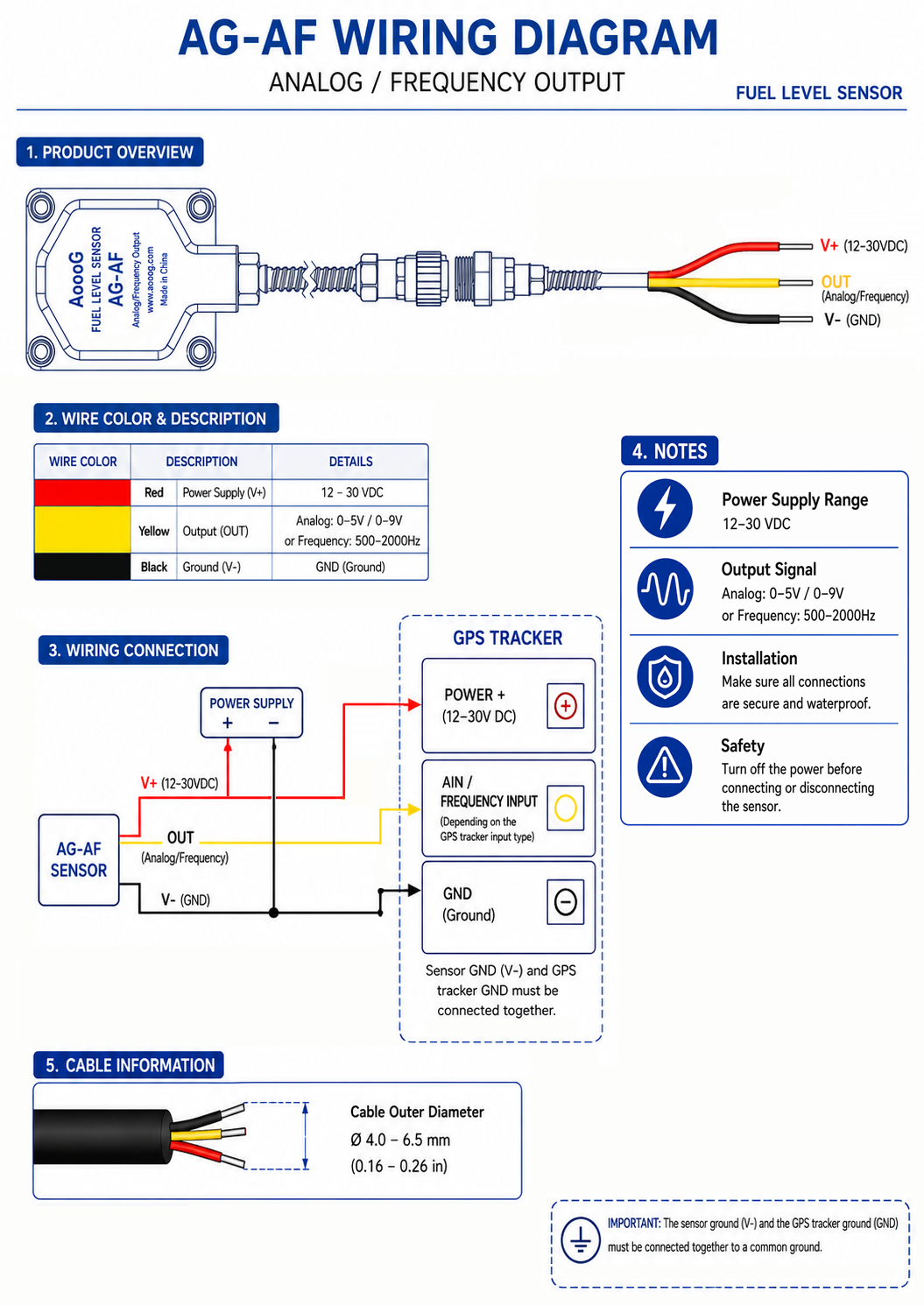

AG-AF WIRING
Connect with confidence.
Connect red to the 12–30 V DC positive supply, black to ground, and yellow to the tracker’s compatible analog or frequency input. The sensor and tracker must share a common ground.
Switch off power before connecting or disconnecting the sensor. Match the tracker input to the sensor’s configured output and keep all connections secure and waterproof.
PRODUCT RESOURCES
Everything for the next step.
Review the specifications, prepare the installation and connect the sensor to your application.
COMMON QUESTIONS
Before you get started.
Can this sensor measure water?
No. These capacitive fuel sensors are intended for non-conductive liquids. Water and other conductive liquids are not suitable.
Do fuel level readings equal litres?
Level and volume are different measurements. The monitoring system needs the correct data format and tank calibration to convert readings into volume for your tank.
Can I shorten the probe?
Yes. Follow the wired user guide for the cutting allowance and mounting arrangement, keep the probe free of debris and complete empty/full calibration after preparation.
Will it work with my tracker?
Your device needs a analog or frequency input and support for the sensor output or protocol. Send us the tracker model to confirm compatibility before ordering.
LET’S FIND THE RIGHT FIT
Start with your tank.
We’ll help with the sensor.
Tell us the fuel type, tank depth and tracker interface.
